Workflows handle multi-step operations that run in the background. Unlike conversations, which respond to user messages, workflows run independently and can be scheduled, started programmatically, or triggered by the AI model. Use workflows for things like data processing pipelines, scheduled tasks, multi-step operations that need retries, or any work that shouldn’t block a conversation.

Creating a workflow

Create a file in src/workflows/:

import { Workflow, z } from "@botpress/runtime"

export default new Workflow({
  name: "processOrder",
  description: "Process a new customer order",
  input: z.object({
    orderId: z.string(),
  }),
  output: z.object({
    status: z.string(),
    total: z.number(),
  }),
  handler: async ({ input, step }) => {
    const order = await step("fetch-order", async () => {
      return await fetchOrder(input.orderId)
    })

    await step("charge-payment", async () => {
      await chargePayment(order)
    })

    return { status: "completed", total: order.total }
  },
})

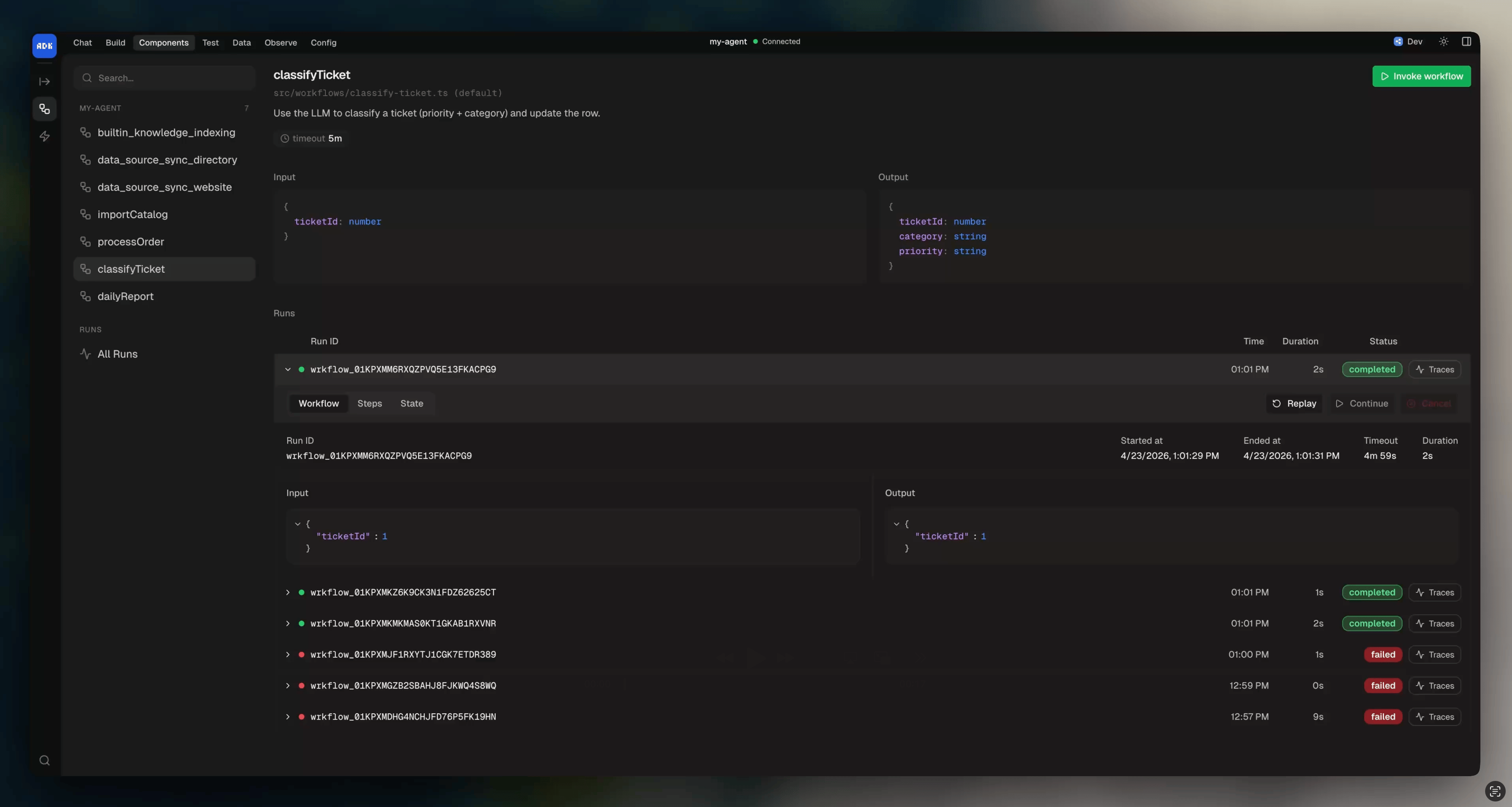

The input and output schemas define what the workflow accepts and returns. Both use Zod. View running and completed workflows, their status, input, output, and run history from the dev console:

Persistent state

Add a state schema to carry data across the workflow’s steps and retries. State is persisted between executions:

export default new Workflow({
  name: "importJob",
  state: z.object({
    processed: z.number().default(0),
    lastId: z.string().optional(),
  }),
  handler: async ({ state, step }) => {
    await step("process-batch", async () => {
      state.processed += 100
      state.lastId = "batch-end"
    })
  },
})

Starting a workflow

Programmatically

import ProcessOrderWorkflow from "../workflows/processOrder"

const instance = await ProcessOrderWorkflow.start({ orderId: "12345" })
console.log("Started workflow:", instance.id)

On a schedule

Use a cron expression to run a workflow on a recurring schedule:

export default new Workflow({
  name: "dailyReport",
  description: "Generate and send a daily summary",
  schedule: "0 9 * * *",
  handler: async ({ step }) => {
    const data = await step("gather-data", async () => {
      return await gatherDailyMetrics()
    })

    await step("send-report", async () => {
      await sendSlackMessage(formatReport(data))
    })
  },
})

Common cron patterns:

Expression	Schedule
`"0 9 * * *"`	Every day at 9:00 AM
`"0 /6 * *"`	Every 6 hours
`"/30 * * *"`	Every 30 minutes
`"0 0 * * 1"`	Every Monday at midnight

As a tool

Convert a workflow to a tool so the AI model can start it during execute():

import { Conversation } from "@botpress/runtime"
import ProcessOrderWorkflow from "../workflows/processOrder"

export default new Conversation({
  channel: "webchat.channel",
  handler: async ({ execute }) => {
    await execute({
      instructions: "You are an order management assistant.",
      tools: [ProcessOrderWorkflow.asTool()],
    })
  },
})

Deduplication

Use getOrCreate() to avoid starting duplicate workflows:

const instance = await ProcessOrderWorkflow.getOrCreate({
  key: "order-12345",
  input: { orderId: "12345" },
  statuses: ["pending", "in_progress"],
})

If a workflow with the same key and one of the specified statuses already exists, it returns the existing instance instead of creating a new one. statuses defaults to ["pending", "in_progress", "listening", "paused"] if you don’t pass it.

Loading a workflow by ID

import { Workflow } from "@botpress/runtime"

const instance = await Workflow.get("workflow-id")

Workflow instance

When you start a workflow, you get an instance with these methods:

Cancel

await instance.cancel()

Set timeout

Extend or change the workflow timeout:

await instance.setTimeout({ in: "30m" })
await instance.setTimeout({ at: "2025-01-15T12:00:00Z" })

Complete early

End the workflow from inside the handler with a result:

export default new Workflow({
  name: "myWorkflow",
  output: z.object({ result: z.string() }),
  handler: async ({ workflow }) => {
    workflow.complete({ result: "done early" })
  },
})

Fail from inside the handler

Mark the workflow as failed with a reason. This throws immediately and interrupts the handler:

handler: async ({ input, workflow }) => {
  if (!input.orderId) {
    workflow.fail("Missing order ID")
  }
}

Run autonomous execute

Run the AI model inside the workflow, same as in conversations:

handler: async ({ workflow, step }) => {
  await step("classify", async () => {
    return await workflow.execute({
      instructions: "Classify this ticket as 'bug' or 'feature'.",
    })
  })
}

Timeout

Workflows time out after 5 minutes by default. Use the timeout prop to change this:

export default new Workflow({
  name: "longProcess",
  timeout: "1h",
  handler: async ({ step }) => {
    // ...
  },
})

For workflows that need to run longer than 5 minutes, use steps. Steps break the work into persisted checkpoints so the workflow can resume from the last completed step.

Handler parameters

Parameter	Type	Description
`input`	`object`	Validated input matching the workflow’s input schema
`state`	`object`	Mutable workflow state, persisted across executions
`step`	`function`	Step function for persistence and control flow
`client`	`object`	Botpress client for API calls
`execute`	`function`	Run the AI model (same as in conversations)
`signal`	`AbortSignal`	Indicates when the workflow should stop
`workflow`	`object`	Current workflow instance (id, name, tags, `cancel`, `complete`, `fail`, `setTimeout`, `execute`)
